Product Description

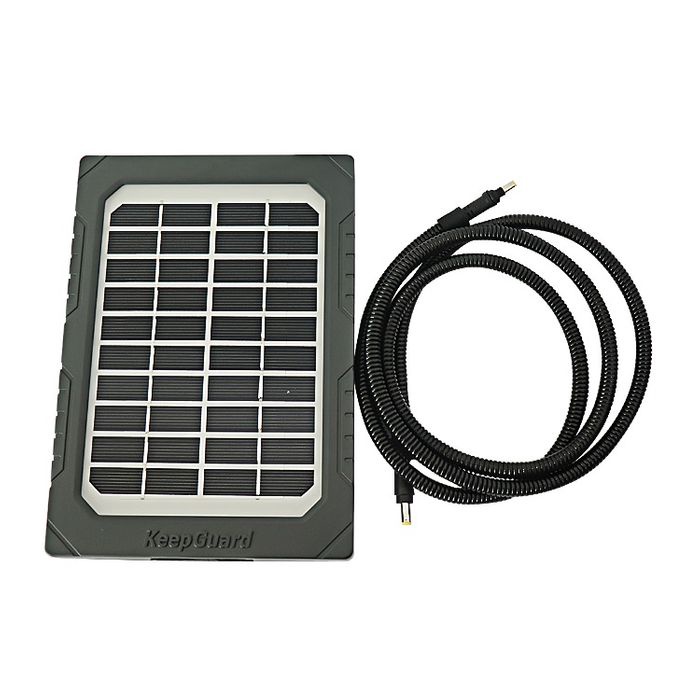

Making your trail camera’s batteries last longer is one of the best ways to assure less trips into your spot. The Keepguard Trail Camera Solar Panel extends your trail camera battery life by months! Use the included adjustable screw-in bracket to mount it near your camera. Attached the positive locking cables and your done!
The solar panel has an internal lithium ion power core, which is continuously charged by the solar cells when they are exposed to the sun. Once connected, the camera will draw its power from the solar panel’s charged lithium battery for as long as possible, switching to its internal batteries only when the Solar Panel’s battery’s charge level is too low. As a result, the camera’s batteries will have significantly longer life.

Charging the Solar Panel Via USB
The Solar Panel also includes a USB port allowing the internal power core to be “pre-charged” before field use, from a computer’s USB connection or similar available source of USB power. Doing this is NOT required prior to use but will allow it to begin providing supplemental power to your camera immediately, instead of waiting for the solar cells to build up adequate charge.
To use this feature, connect a compatible USB Mini cable (not included) from the Solar Panel to your computer or an adequate power source. The charging indicator LED on the back of the Solar Panel will glow red while charging is in progress, then turn green when charging is complete.

Mounting and Camera Connection

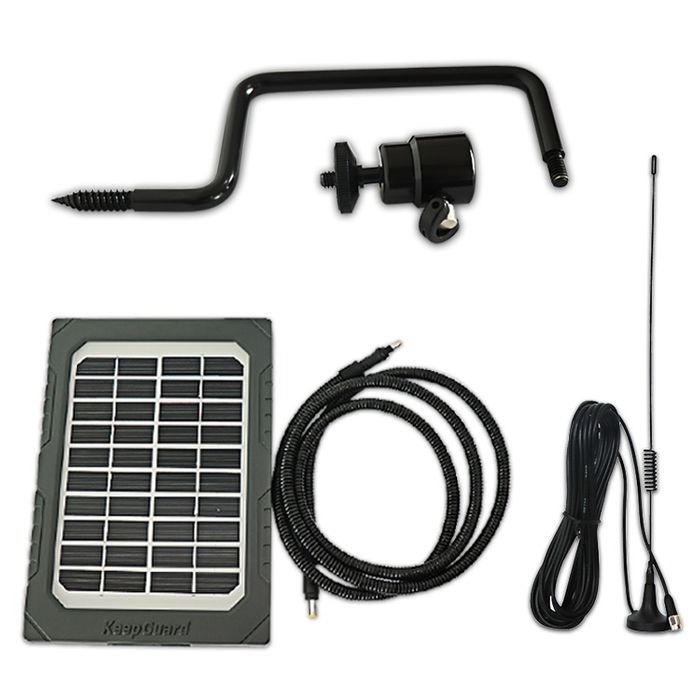

A mounting bracket is provided with the Solar Panel. The bracket should first be screwed into the tree at a point above the camera where the solar panel has a unobstructed exposure to the sun for the longest part of the day. With the swivel head firmly attached to the tree bracket, connect the threaded bolt at the end of the swivel head to the mounting socket (brass 1/4" x 20) on the back of the Solar Panel. Loosen the swivel head knob, then the Solar Panel so that the solar cells are aimed at the sun. Once aligned tighten both locking collars. Finally, attached the supplied cable to both the solar panel and the camera and tie up the slack.

Specifications
Power Requirement : 5 V @ min 500mA
USB Charging Voltage : 4V ~ 6V
Discharging Voltage : 7V ~ 8.4V
Max. Discharge Current : 2A
Max. Charge Voltage Protection : 6V
Recommended Charging Time : 12 hours for full charge
Charging Priority : If both USB and solar charging sources are available, USB charging will have higher priority than solar.
Operating Temperature : -20 - 40°C (Storage temperature: -30 - 70°C)
Operating Humidity : 5% - 90%
