Product Description

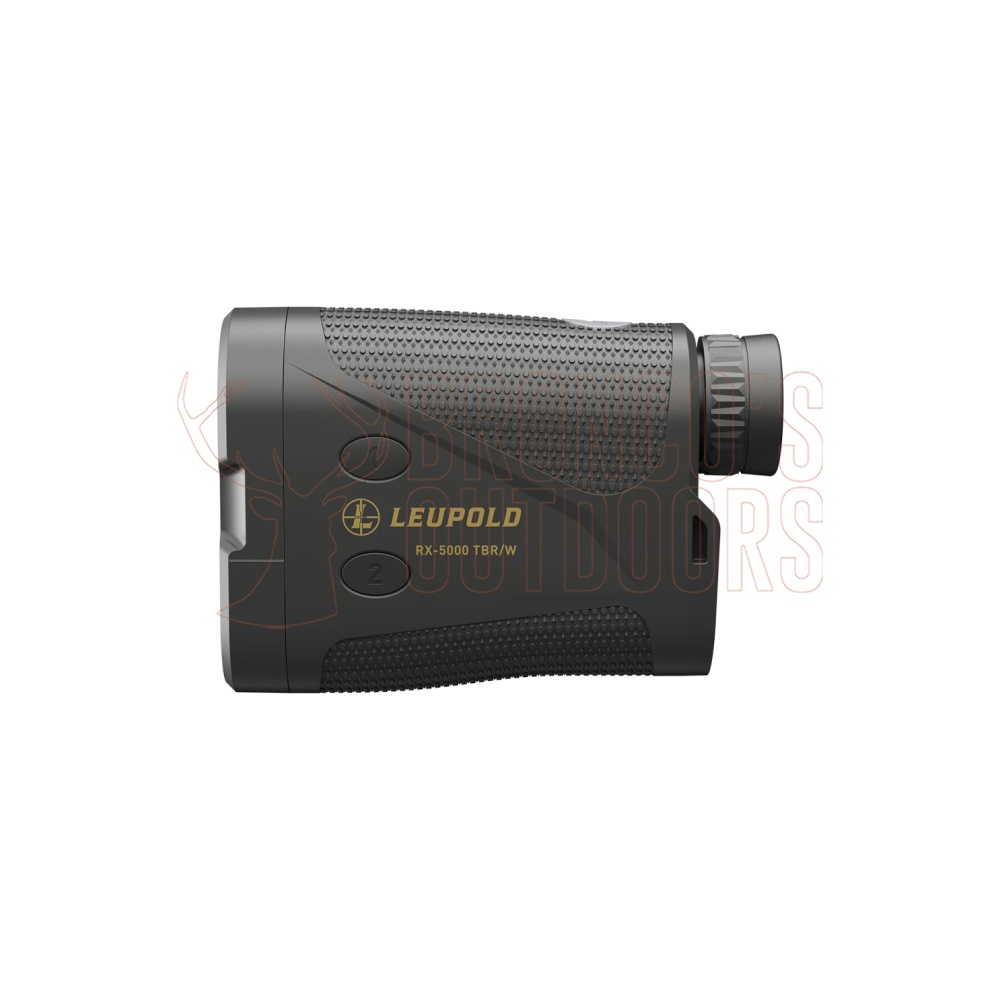

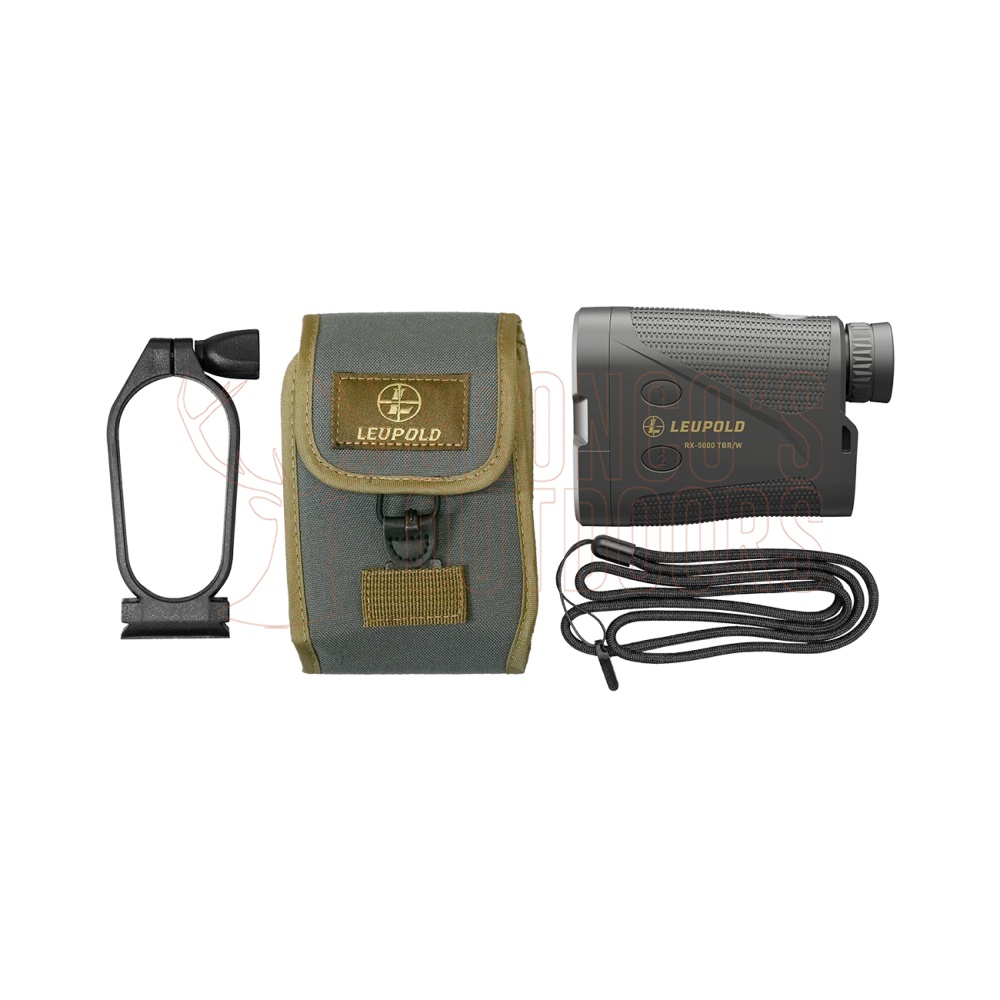

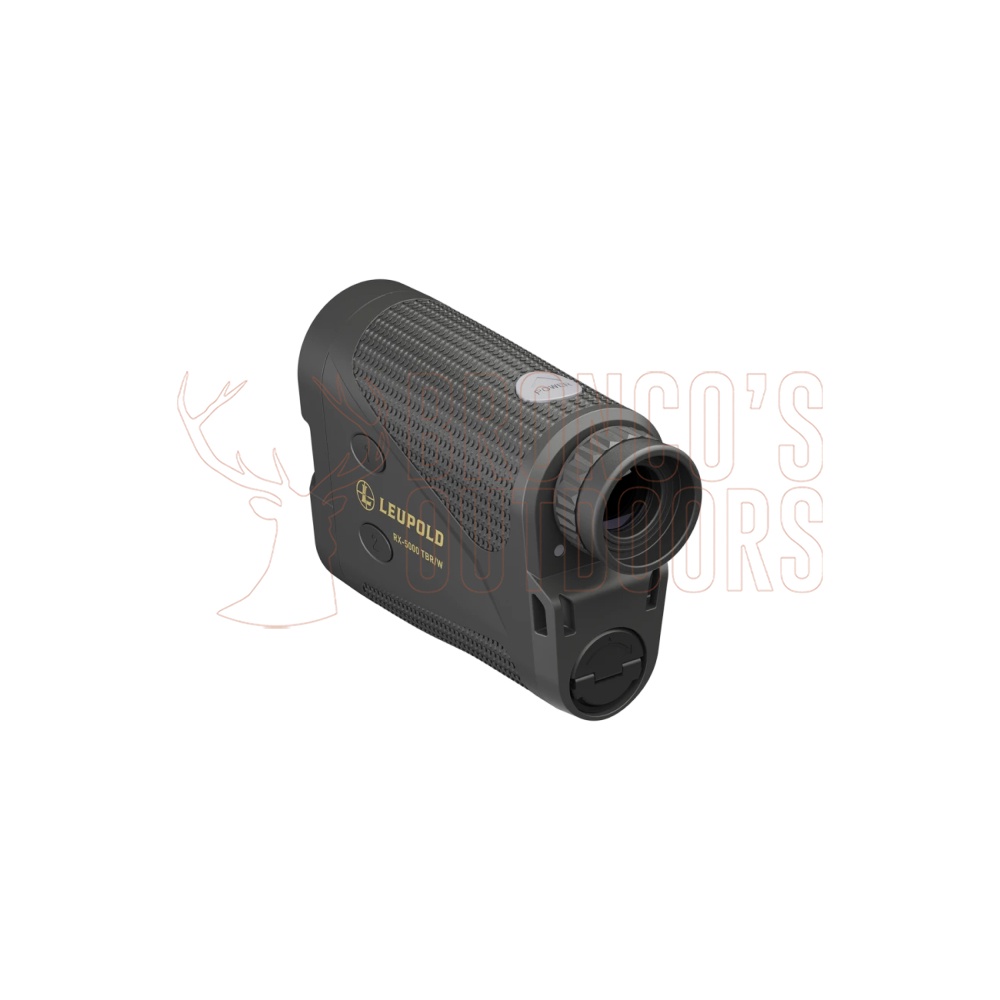

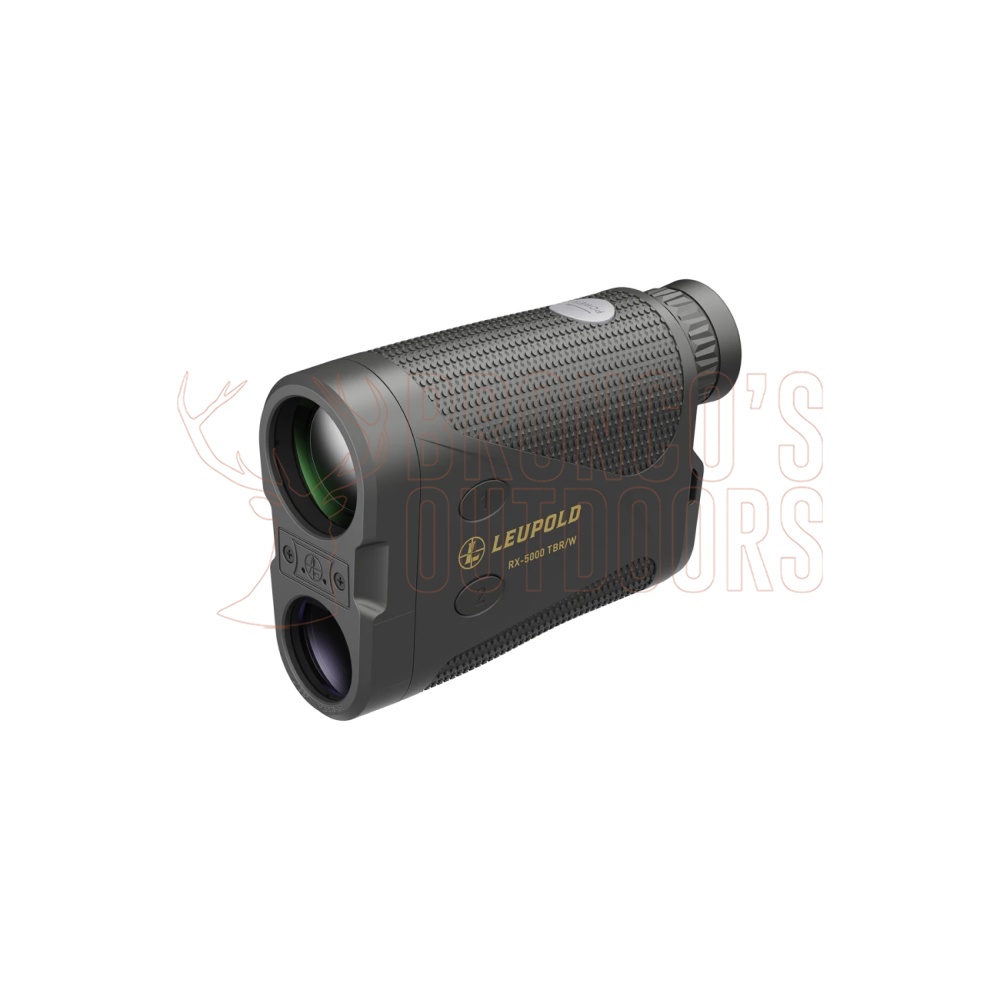

The RX-5000 TBR/W is the rangefinder for today’s rifle and bow hunter. With an impressive 5,000-yard ranging capability, this optic ensures precise shots every time. But what really sets it apart is its integration with the Leupold Control app, allowing you to remotely drop location pins to your phone using digital maps like onX Hunt.

Along with its pinning feature, the RX-5000 TBR/W includes our popular True Ballistic Range (TBR) mode, which provides custom readings based on distance, angle, and your bullet's characteristics. This rangefinder also includes Bow Mode, featuring Archer’s Advantage, an advanced function designed for shooting at distances out to 175 yards with unlimited angles. Bow Mode also has a TRIG function, which is an excellent “set it and forget it” feature that is simple to use and accurate out to around 70 yards and for angles less than 20 degrees. This function is ideal for Western spot-and-stalk hunters and tree-stand hunters, providing 10-ring target level accuracy.

Then there's also Long Range (LONG) mode. Instead of helping you dial in your shots, this mode will help you get situated in the field. It enables you to range up to 5,000 yards on trees and deer-sized game, making it the perfect tool to use with pinning for navigating from one ridgetop to the next.

We've also outfitted this rangefinder with best-in-class 8x power, a bright red OLED display, and a waterproof housing. So whether you're scouting in springtime showers or hunting the rugged coastline of Alaska, the RX-5000 TBR/W will keep you firmly in control.

NOTICE: Changes in environmental conditions, nearby metal objects, or binocular harnesses magnets, may affect the accuracy of the RX-5000’s digital compass. To maintain accuracy, it is recommended to initiate calibration through the Leupold Control app on every outing.



Specification

Archery Angle Compensation Bow Mode
Battery Type CR123
Display Color OLED (Red Display)
Flightpath No
Magnification 8
Prism Lock No
Rifle Angle Compensation TBR/W
Trophy Scale No
Tripod Compatible (1/4-20) No
True Ballistic Range (TBR) Mode No
Horizontal Distance (TRIG-H) No
Archer's Advantage No
True Golf Range (TGR) No
Length (in) 4.4
Width (in) 1.6
Height (in) 3.1
Weight (oz) 9.7
Objective Diameter (mm) 30
Linear FOV (ft@1000 yd) 289
Angular FOV (Degrees) 5.5
Eye Relief (mm) 17.3
Min Diopter (dpt) -3
Max Diopter (dpt) 3
Light Transmission (%) 80
Battery Life (Actuations) 3000
Accuracy to 125 (yd) .5
Accuracy to 1000 (yd) 2
Accuracy above 1000 (yd) % .2
Max Range - Deer (yd) 2000
Max Range - Trees (yd) 3100
Max Range - Reflective (yd) 5000
Min Range (yd) 6
Laser Classification Class 1M
