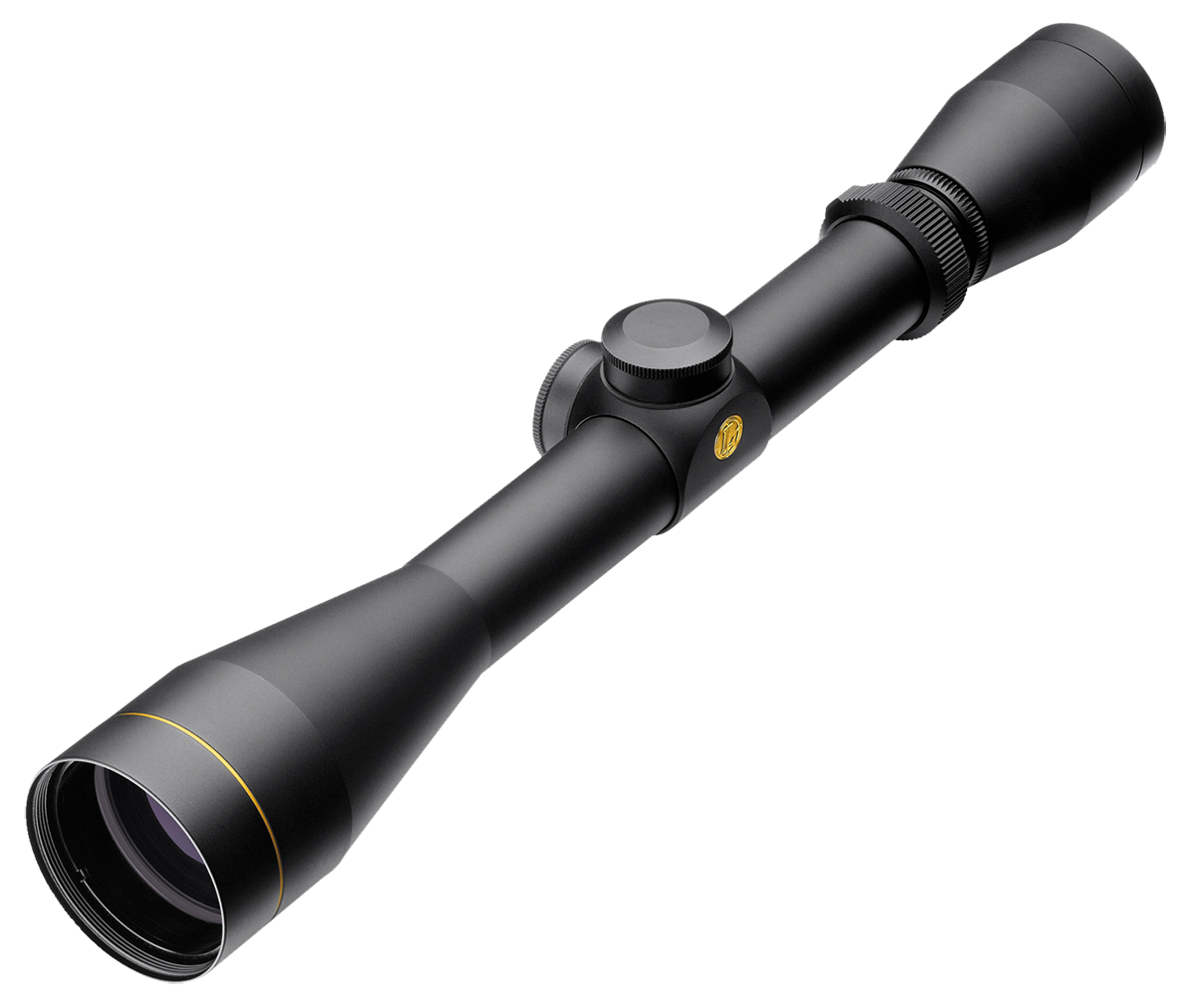

Leupold VX-1 3-9X40 Duplex

Product Description

VX®-1 riflescopes deliver performance you can count on, and are now available with the LR Duplex® reticle of the Ballistics Aiming System™.

Generous Eyebox
The generous eyebox makes it faster and easier to get your eye behind the riflescope and achieve a full, clear sight picture. Setting up for longer shots you'll appreciate the flexibility it affords, and in close up big game or dangerous game situations the quick target acquisition will be the difference maker. At high power, the longer eye relief and more generous eyebox gives you incredible head position latitude and an improved sight pictue that fills the eyepiece completely - putting you in better position to make the shot of a lifetime.

Classic/Standard Lockable Eyepiece
Leupold's classic/standard fast focus eyepiece with a low profile lock ring makes reticle focus easy to achieve and maintain.

3:1 Zoom Ratio

1/4 MOA Finger Click
Finger click adjustments for windage and elevation (¼-MOA) offer absolute repeatability and dependability over a lifetime of extreme use (metric adjustments – 1 cm per click).

Tactile Power Selector
Waterproof/Fogproof
Proprietary Nitrogen Fill Process
One inch Maintube
6061-T6 Aircraft Quality Aluminum

Durable Lens Cover
Keep the lenses of your Leupold® riflescope looking like new. Protect it from dirt and damage with the durable bikini style lens cover included with your riflescope. Protects your scope while in storage or in the field.

Multicoat 4
Light reflecting off lens surfaces diminishes image quality. So Leupold® engineers developed Multicoat 4®, our own proprietary lens coating system to keep image quality pristine. Multicoat 4 greatly increases the amount of all available light that reaches your eye, while at the same time, it minimizes the reflections of the sky on the outer eyepiece. You’ll never be able to control the light, but with Leupold’s Multicoat 4, you can always make the most of it.

Low/High
Actual Magnification:3.20 x/ 8.80 x
Linear Field of View (ft/100 yd):34.60 ft/ 14.60 ft
Linear Field of View (m/100 m):11.40 m/ 4.70 m
Eye Relief (in):4.20 in/ 3.70 in
Eye Relief (mm):108.00 mm /94.00 mm
Weight (oz):11.20 oz
Weight (g):318.00 g
Objective Clear Aperture (in):1.60 in
Objective Clear Aperture (mm):40.00 mm
Elevation Adjustment Range: 52.00 moa
Windage Adjustment Range:52.00 moa

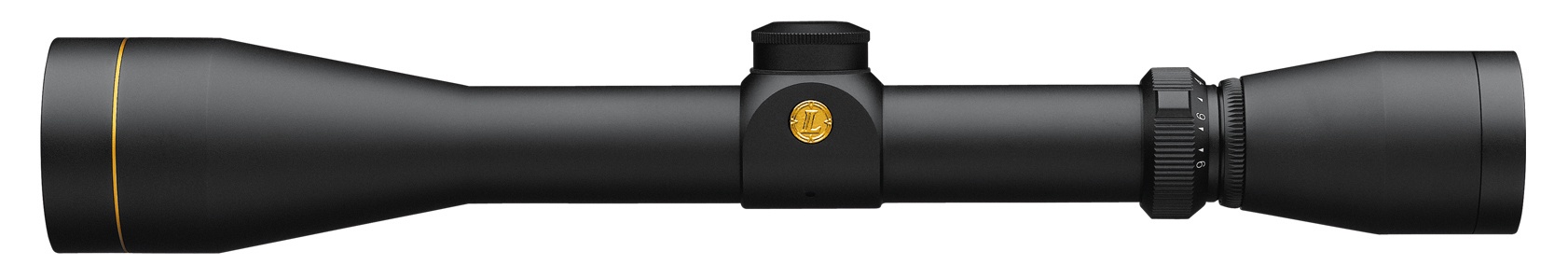

Scope Profile Diagram

A. Length12.60 in
B. Tube Length5.60 in
C. Illustration2.30 in
D. Illustration2.20 in
E. Eyepiece Length3.10 in
F. Objective Length3.50 in
G. Objective Diameter1.80 in
H. Eyepiece Diameter1.60 in
K. Tube Diameter1.0 in / 25.40 mm
