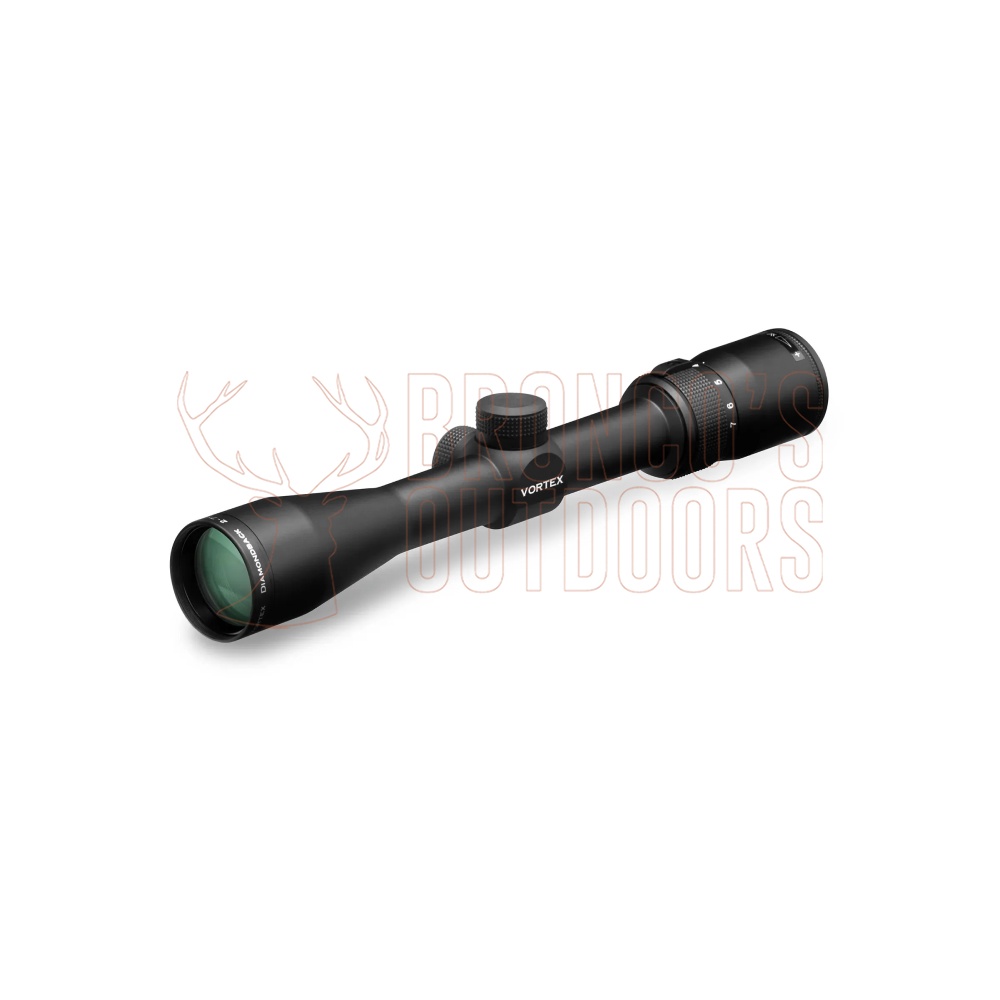

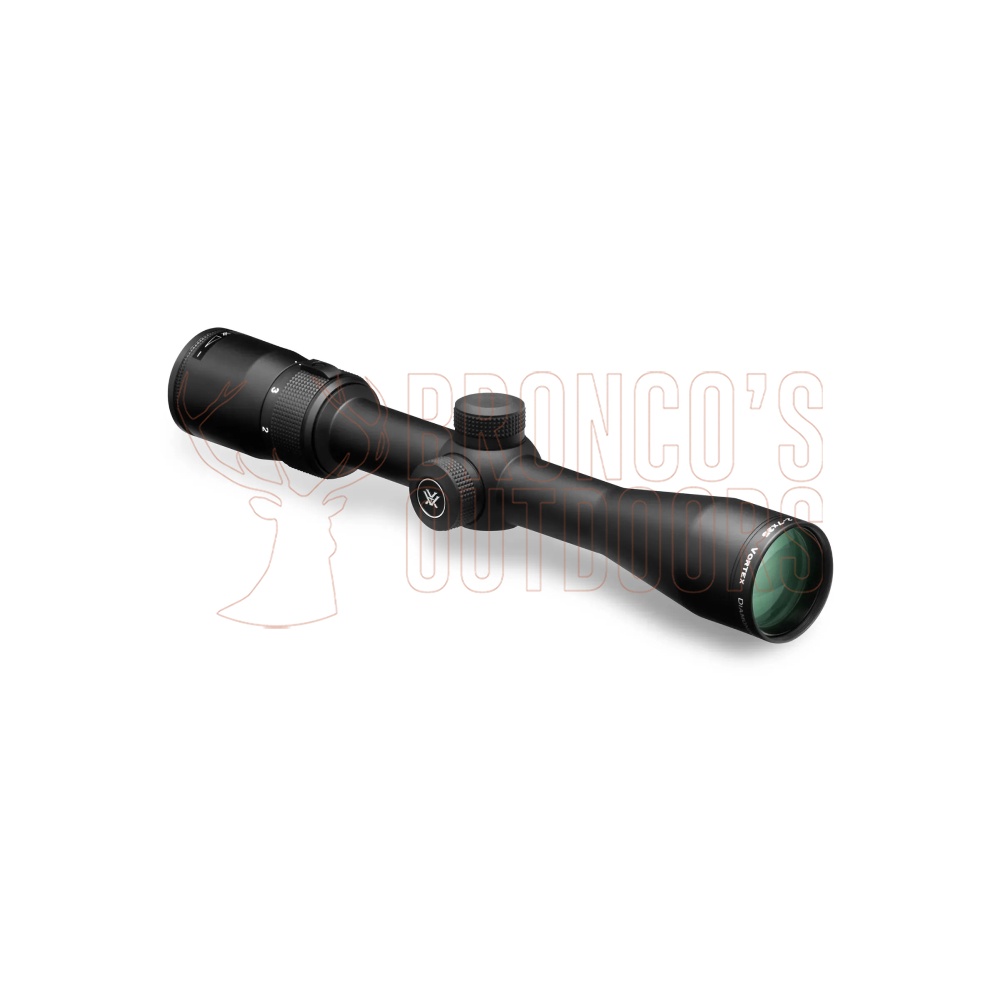

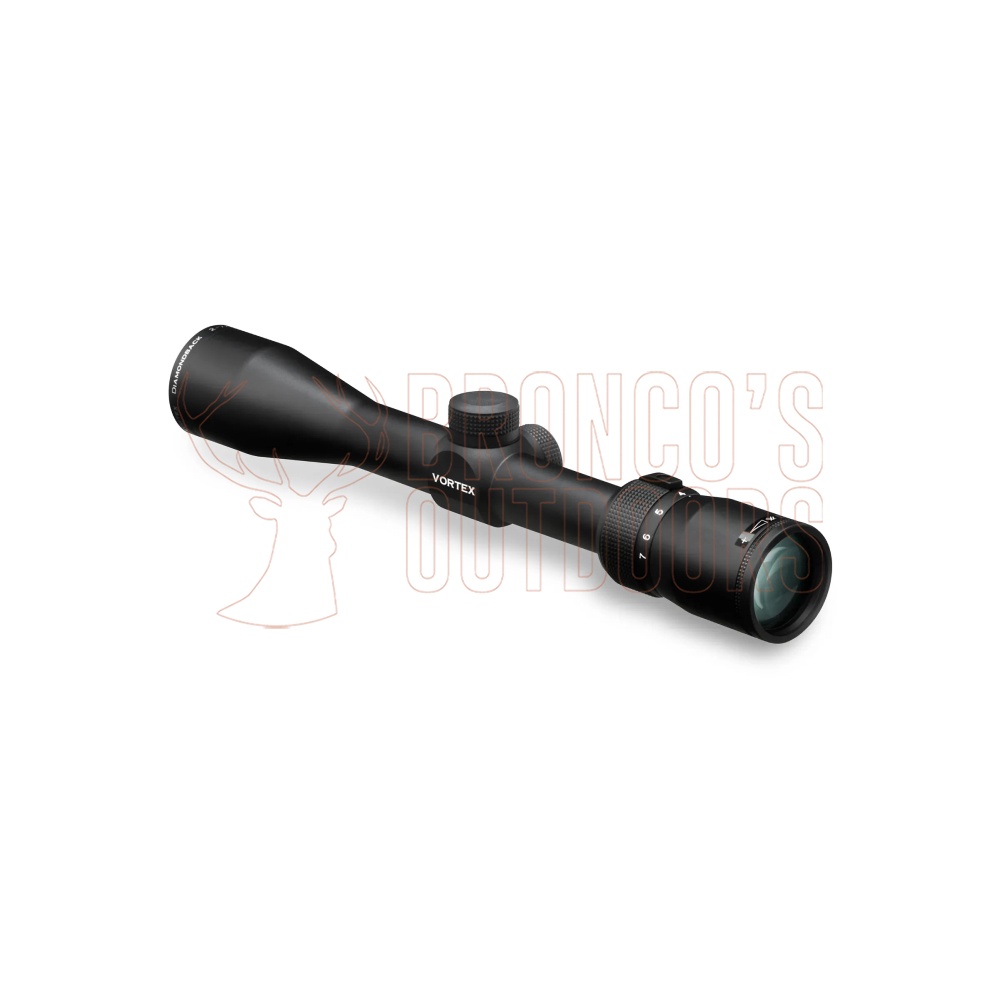

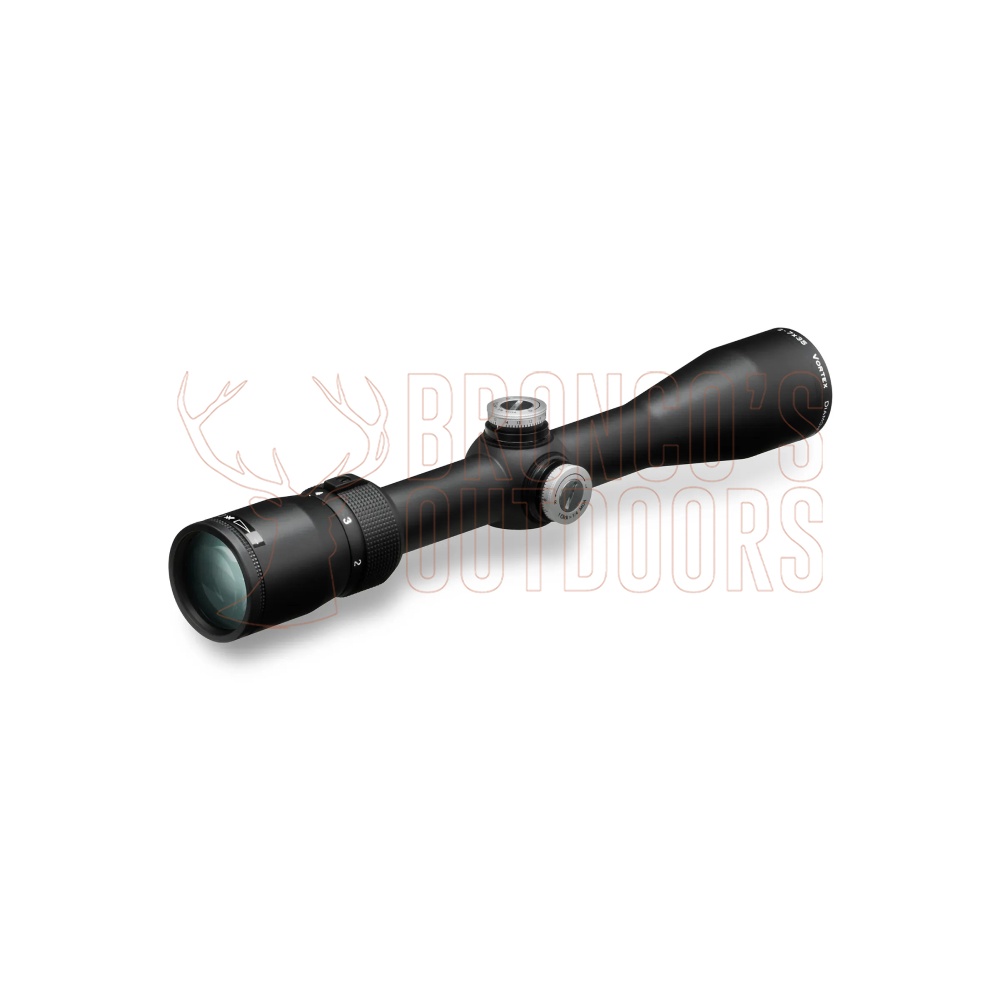

Vortex Diamondback 2-7x35 V-Plex Rimfire

Product Description

The Diamondback — loaded with features! First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you'd expect to cost quite a bit more-but doesn't. We can live with that.

2-7x35 Diamondback Rimfire has a 50-yard parallax setting which makes it ideal for use at close range on 22 rimfire, shotguns and muzzleloaders.

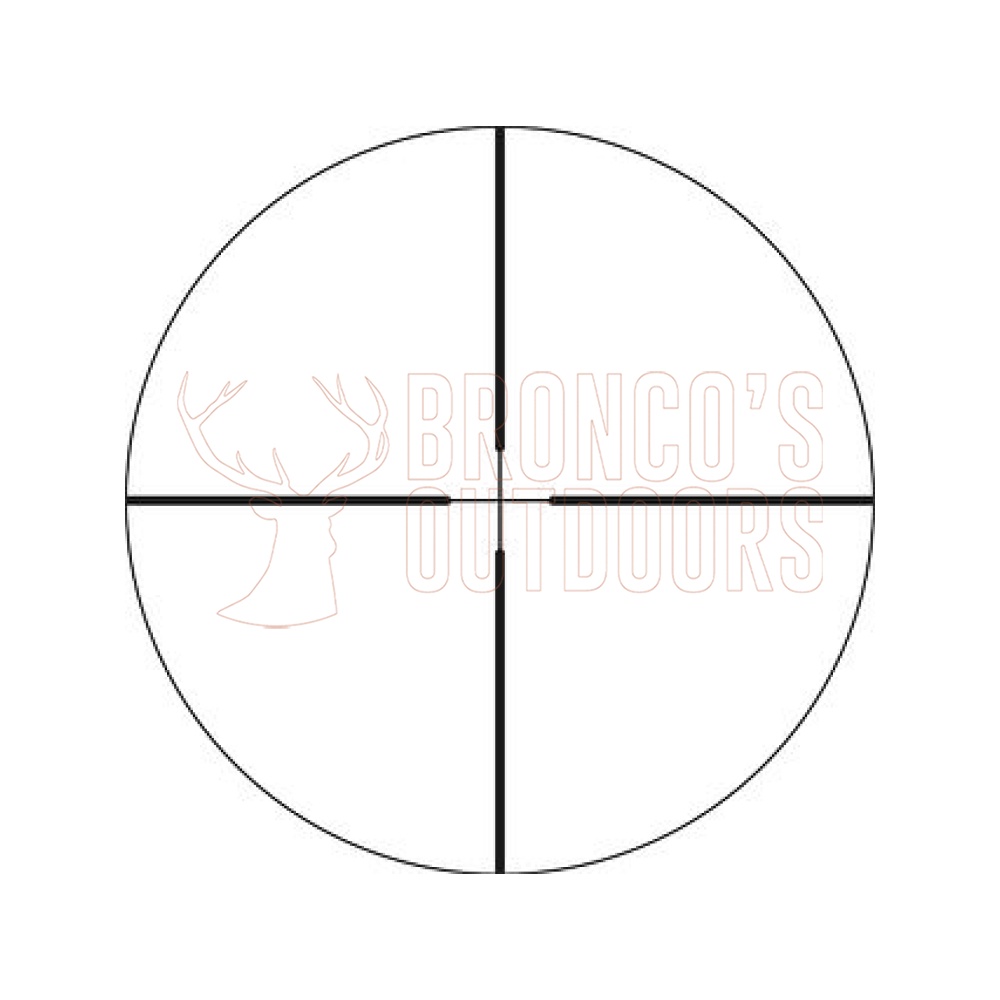

V-Plex reticle is the single best all-purpose hunting reticle intended for a wide variety of hunting applications.
Parallax is set at 50 yards.

VIP Warranty
Argon Purged
Waterproof

SPECIFICATIONS
Magnification2-7 x
Objective Lens Diameter35 mm
Eye Relief3.1 inches
Field of View64.3-19.3 feet/100 yards
Tube Size1 inch
Turret StyleCapped
Adjustment Graduation1/4 MOA
Travel per Rotation15 MOA
Max Elevation Adjustment100 MOA
Max Windage Adjustment100 MOA
Parallax Setting50 yards

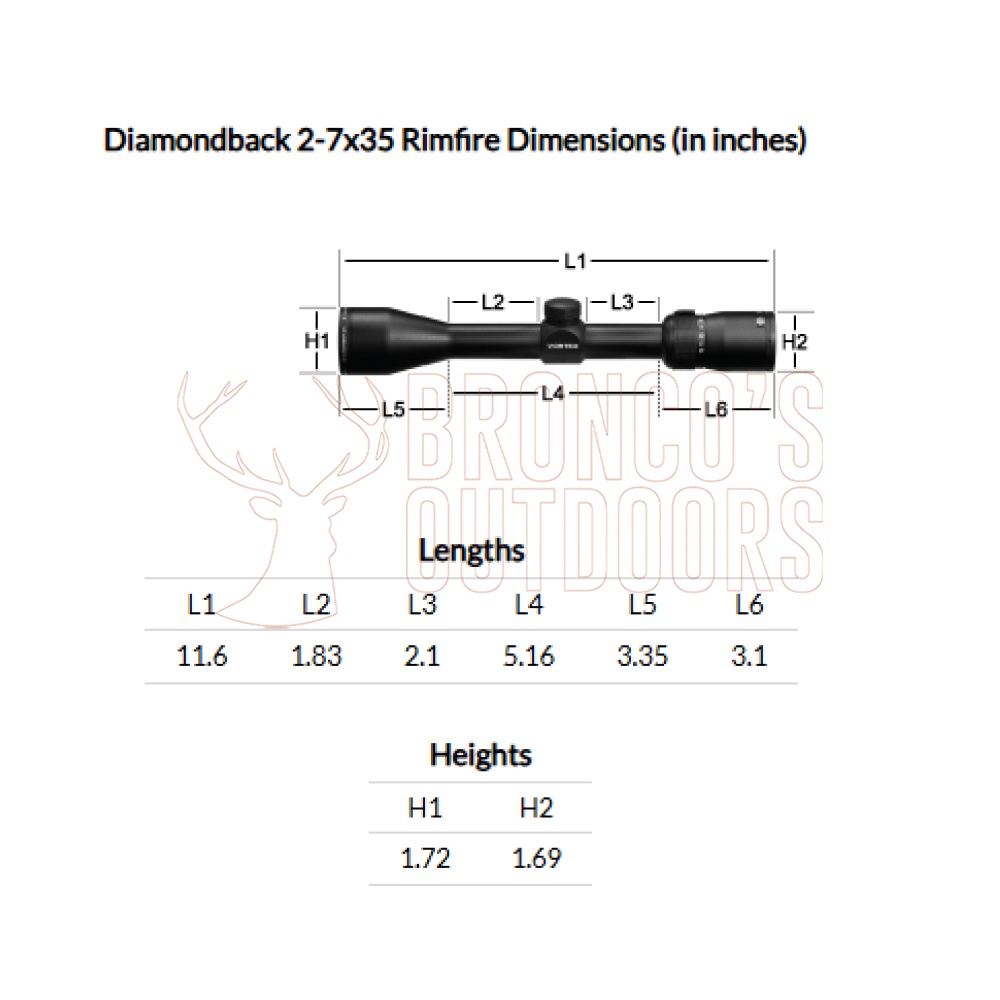

Length11.6 inches
Weight14.2 ounces

Included in the Box
Removable lens covers
Lens cloth
VIP Unconditional Lifetime Warranty

OPTICAL FEATURES
Fully Multi-CoatedIncreases light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
Second Focal Plane ReticleScale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.

CONSTRUCTION FEATURES
Tube Size1-inch diameter.
Single-Piece TubeMaximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade AluminumConstructed from a solid block of aircraft-grade aluminum for strength and rigidity.
WaterproofO-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
FogproofArgon gas purging prevents internal fogging over a wide range of temperatures.
ShockproofRugged construction withstands recoil and impact.
Hard Anodized FinishHighly durable low-glare matte finish helps camouflage the shooter's position.
Precision-Glide Erector SystemUses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
Capped Reset TurretsAllow re-indexing of the turret to zero after sighting in the riflescope. Caps provide external protection for turret.

INTERNAL MECHANISM DESIGN FEATURES
Precision-Glide Erector SystemUses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.

CONVENIENCE FEATURES
Fast Focus EyepieceAllows quick and easy reticle focusing.
