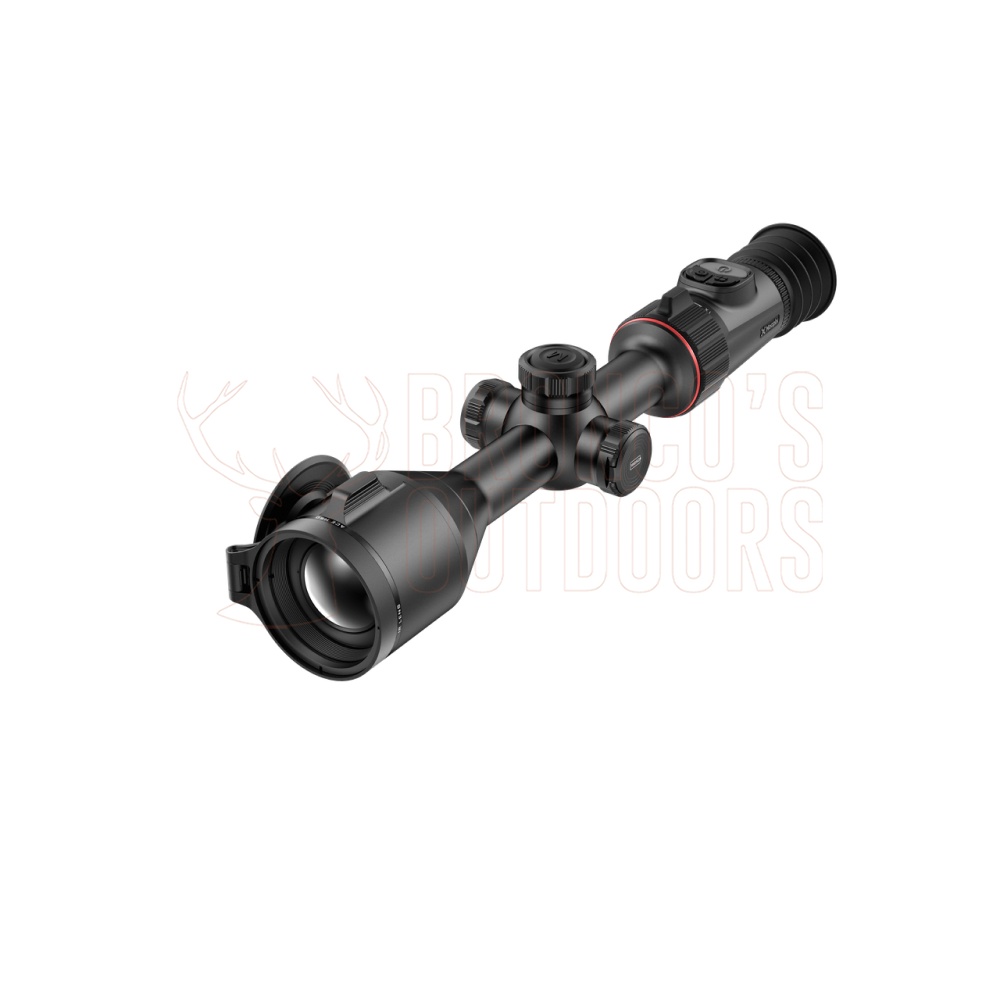

Nocpix Ace H50 Thermal Scope 50mm
Product Description
The Nocpix Ace H50 thermal scope represents the next evolution in thermal imaging riflescopes, designed to replace the conventional "digital look" of thermal optics with a viewing experience that feels closer to traditional glass. Positioned as a flagship optic for professional hunters, the Nocpix Ace H50 combines a proprietary high-sensitivity thermal sensor with the revolutionary Vision+ viewing system.
Unlike standard thermal scopes that rely on heavy digital zoom that degrades image quality, the Ace H50 utilises a unique ocular zoom system. This allows for optical magnification of the display itself, maintaining pristine resolution even when zoomed in. At its core is a 640x512, 12µm sensor with an industry-leading NETD of ≤15mK, capable of detecting minute temperature differences in harsh conditions like rain, fog, or heavy humidity.
Housed in a classic, tube-style alloy body that mounts with standard 30mm rings, the Ace H50 offers a shutterless calibration system. This eliminates the "freeze" or "click" sound typical of other thermal scopes during NUC (Non-Uniformity Correction), ensuring you never lose sight of your target at a critical moment. With a detection range of up to 2600 metres and a massive 1.03-inch AMOLED display, the Nocpix H50 is built to excel in low-light conditions.
| Feature | Description |
|---|---|
| Vision+ System with Ocular Zoom | Instead of just enlarging pixels digitally, the Ace H50 uses an optical zoom module on the eyepiece. This magnifies the screen image optically, providing a clearer, more immersive view without the pixelation found in traditional digital zoom. |
| Unmatched Thermal Sensitivity (NETD ≤15mK) | The highly sensitive sensor picks up subtle heat signatures (like antlers, fur texture, or heat footprints) even when the thermal contrast of the environment is low. |
| Shutterless Technology | The device operates without a mechanical shutter for calibration. This results in silent operation and a continuous, uninterrupted image stream, ensuring no freezing right before you take the shot. |
| Large-Format AMOLED Display | Features a massive 1.03-inch, 2560×2560 round AMOLED screen, delivering a comfortable, edge-to-edge viewing experience similar to looking through a high-end optical day scope. |
| Reality+ AI Image Processing | A proprietary algorithm that reduces image noise and enhances detail, making background elements and targets appear sharper and more distinct. |
| Dual Battery System | Combines a built-in 4000mAh battery with a replaceable 18650 battery turret, offering extended runtimes and hot-swap capability in the field. |
| Classic Tube Design | Built on a standard 30mm tube chassis for easy mounting with widely available rings and a familiar rifle aesthetic. |
| Category | Specification |
|---|---|
| Model | Nocpix Ace H50 |
| Sensor Resolution | 640 × 512 |
| Pixel Pitch | 12 µm |
| Thermal Sensitivity (NETD) | ≤ 15 mK |
| Frame Rate | 60 Hz |
| Objective Lens | 50mm / F0.9 |
| Optical Magnification | 3-24x |
| Field of View (H × V) | 8.8° × 7.0° |
| Detection Range | 2600 metres |
| Display Type | AMOLED (Round) |
| Display Size | 1.03 inch |
| Display Resolution | 2560 × 2560 |
| Eye Relief | 50 mm |
| Battery Type | Built-in (4000mAh) + Replaceable 18650 |
| Operating Time | ~7 Hours (typical) |
| Storage (Internal) | 64 GB |
| Video/Audio Recording | Yes (Recoil Activated) |
| Connectivity | Wi-Fi / Nocpix App |
| IP Rating | IP67 (Waterproof/Dustproof) |
| Weight | ~1090gm (varies slightly with battery config) |
| Dimensions | 365 × 90 × 68 mm |
| Tube Diameter | 30 mm |
