Product Description

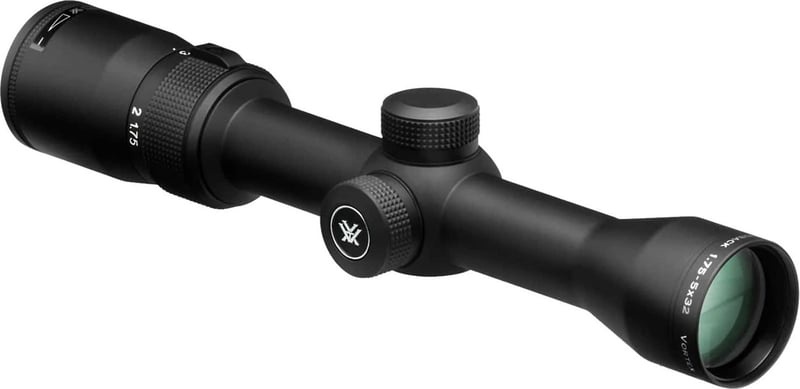

The Vortex Diamondback 1.75-5x32 riflescope redefines expectations for its class. This classic go-to hunting scope delivers exceptional performance, offering outstanding image quality, robust build, and a precise feel for its turrets and fast-focus eyepiece. The Diamondback 1.75-5x32 BDC model is a high-quality riflescope designed for various outdoor and sporting applications, providing excellent value.
Included in the Box
- Removable lens covers
- Lens cloth
| Specifications | |
|---|---|
| Magnification | 1.75-5x |
| Objective Lens Diameter | 32 mm |
| Eye Relief | 3.5 inches |
| Field of View | 68.3-23.1 ft/100 yds |
| Tube Size | 1 inch |
| Turret Style | Capped |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 15 MOA |
| Max Elevation Adjustment | 125 MOA |
| Max Windage Adjustment | 125 MOA |
| Parallax Setting | 100 yards |
| Length | 10.2 inches |
| Weight | 12.8 oz |
- Fully Multi-Coated: Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
- Second Focal Plane Reticle: The scale of the reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover, and wind drift correction are accurate at the highest magnification.
- 1-inch Tube: This diameter tube offers a versatile blend of adjustment, size, and weight for a wide variety of shooting applications.
- Single-Piece Tube: Maximises alignment for improved accuracy and optimum visual performance, while ensuring strength and waterproofness.
- Aircraft-Grade Aluminium: Constructed from a solid block of aircraft-grade aluminium for strength and rigidity.
- Waterproof: O-ring seals prevent moisture, dust, and debris from penetrating for reliable performance in all environments.
- Fogproof: Argon gas purging prevents internal fogging over a wide range of temperatures.
- Shockproof: Rugged construction withstands recoil and impact.
- Hard Anodised Finish: Highly durable hard-coat anodisation provides a low-glare matte surface.
- Capped Reset Turrets: Allow quick re-indexing of the turret (no tool needed) to zero after sighting in the riflescope. Caps provide external protection for the turret.
- Precision-Glide Erector System: This system ensures the components in the zoom lens mechanism glide smoothly and cleanly through all magnification ranges.
- Fast Focus Eyepiece: Allows quick and easy reticle focusing.
